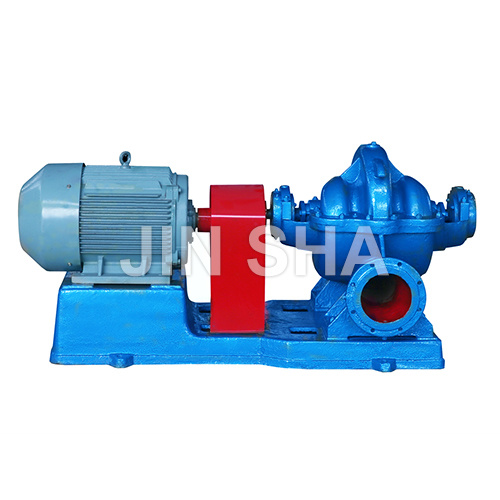

S Split Case Pump

Model-S, SH pump is the single-stage double-suction horizontal centrifugal pump, which is suitable for pumping clean water without solid particles or other liquid whose physicochemical property is similar to that of clean water. Transmission medium is usually not more than the temperature of 80℃. It is widely used in water supply and drainage of urban construction, factories and mines, as well as water conservancy and farm irrigation.
未标题-15
4c0f9d45-97a2-4e22-a6fb-a6bcf414715e
未标题-16
Description
Construction description
Structure
Data sheet

Products overview:

Model-S, SH pump is the single-stage double-suction horizontal centrifugal pump, which is suitable for pumping clean water without solid particles or other liquid whose physicochemical property is similar to that of clean water. Transmission medium is usually not more than the temperature of 80℃. It is widely used in water supply and drainage of urban construction, factories and mines, as well as water conservancy and farm irrigation.

Model meaning:

yatai



The inlet and outlet of Type S pump are all below the axial line and perpendicular to the axis in a horizontal direction. Pump casing is horizontal split casing and it is unnecessary to dismantle motor and piping when maintenance. View from coupling end, the rotating direction of pump is clockwise. It should be specified stated when ordering if you need counter-clockwise rotated pump.
Main components and parts of the pump are: pump casing, pump cover, shaft, dual-suction seal ring, shaft sleeve, bearing etc. Most of the parts are made of cast iron, except the shaft is made of quality carbon steel.



yatai





yatai

yatai



yatai



yatai



yatai



yatai
